PV Branch Connectors

PV004 T- and Y-branch connectors for photovoltaic wiring, with branch layout, mating interfaces and current rating selected to suit the array.

Formal quotation is prepared after reviewing configuration, quantity, availability, logistics, documentation, and destination requirements.

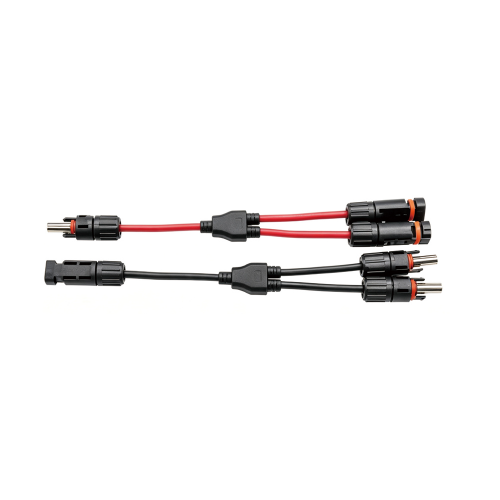

PV004 T- and Y-branch connectors organize multiple photovoltaic leads into a defined branch arrangement. The range includes 3-to-1, 4-to-1, 5-to-1 and 6-to-1 T-branch references, plus 2-to-1 and 3-to-1 Y-branch references, allowing the connector geometry to follow the planned array layout.

Choose the branch form from the wiring diagram rather than by branch count alone. The mating connector series, polarity and combined current at the common connection must suit the complete DC circuit. Branch count is therefore one part of the electrical and mechanical selection.

T-branch references PV004-T3, PV004-T4, PV004-T5 and PV004-T6.
Y-branch references PV004-2T1 and PV004-3T1.
Required polarity and mating connector interface.
Combined-current requirement for the completed branch.
