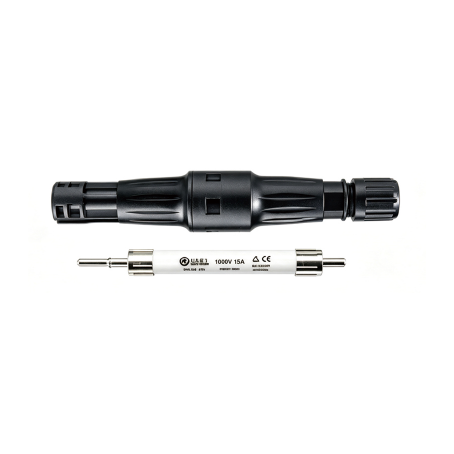

PV005-F fuse connectors and holders add an in-line overcurrent protection point to photovoltaic DC wiring. The family includes several suffix variants and current choices of 15 A, 20 A, 25 A and 30 A, so the connector body and fuse rating need to be selected as one assembly.
Match the exact reference to the circuit voltage, cable capacity and upstream protection design. Also confirm whether the fuse is supplied with the holder and which mating connectors are required at both ends; these details should not be inferred from the family name.
- PV005-F suffix variant and holder arrangement.
- Required fuse current and DC voltage rating.
- Mating connector interface and polarity.
- Fuse inclusion and replacement access.
