PV004 and PV004-P are solar PV connector options for different connection layouts. PV004 supports an inline cable connection, while PV004-P is the panel-end form for mounting at an equipment or enclosure interface.

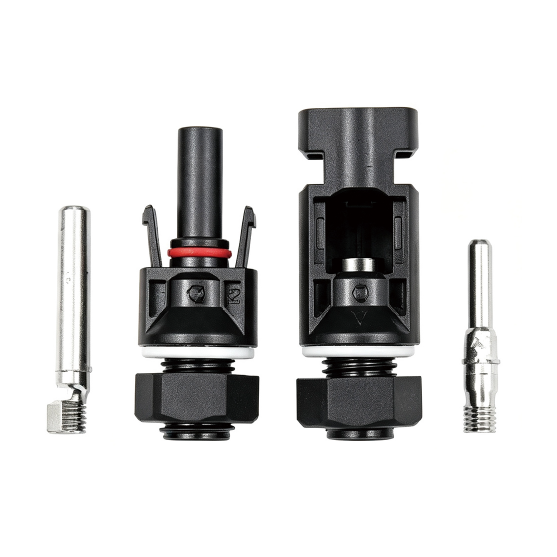

The PV004-P panel-end option has a specified 1000VDC rating and tinned-copper contacts. A complete assembly still depends on the exact mating pair, polarity, conductor size, cable outside diameter, sealing components and mounting interface. Confirm both halves and the application rating together; a similar connector profile alone does not establish mating compatibility.
- PV004 inline cable-connection format.
- PV004-P panel-end configuration.
- 1000VDC rating for the PV004-P panel-end option.
- Contact and cable specification matched to the selected connector.
